Manual Swing Airtight Door

Manual Swing Airtight Door
Manually operated swing airtight doors are designed specifically for clean and sealed environments. They are available in two types based on opening method: manual single-opening swing airtight doors and manual double-opening swing airtight doors. Special airtight sealing strips are embedded around the door perimeter, ensuring a tight seal with the door frame when closed, effectively isolating airflow, dust, and microorganisms, and meeting the pressure differential requirements of clean areas. Heavy-duty hinges and stainless steel handles make manual opening easy and effortless. A self-closing spring is optional for automatic reset and closure. The door surface can be made of stainless steel, color steel plate, or medical antibacterial board, which is easy to clean and corrosion-resistant.
Online message

Product Parameters


手动单开平开气密门1

手动双开平开气密门

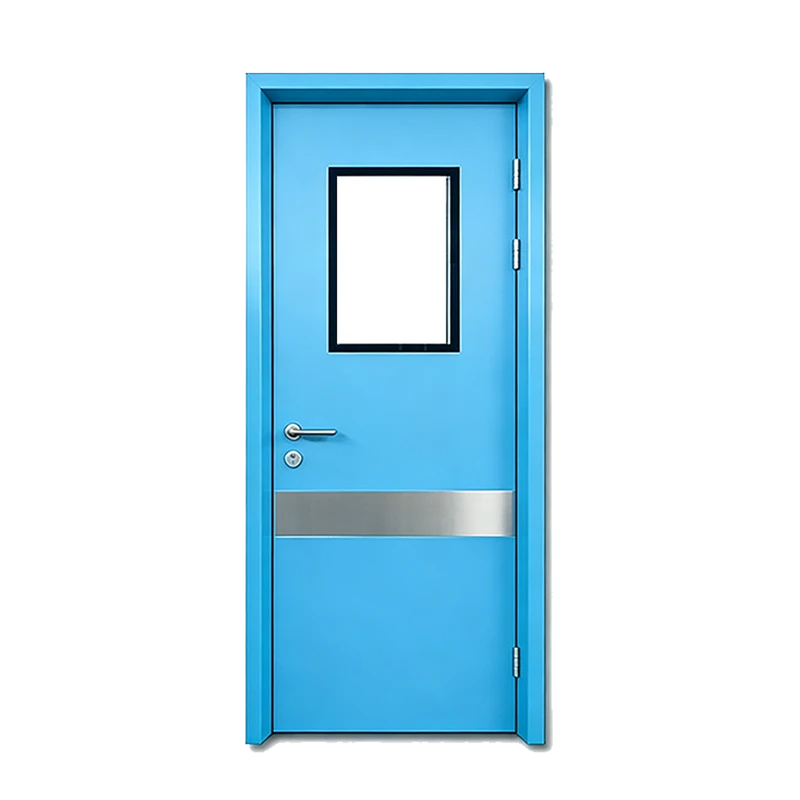

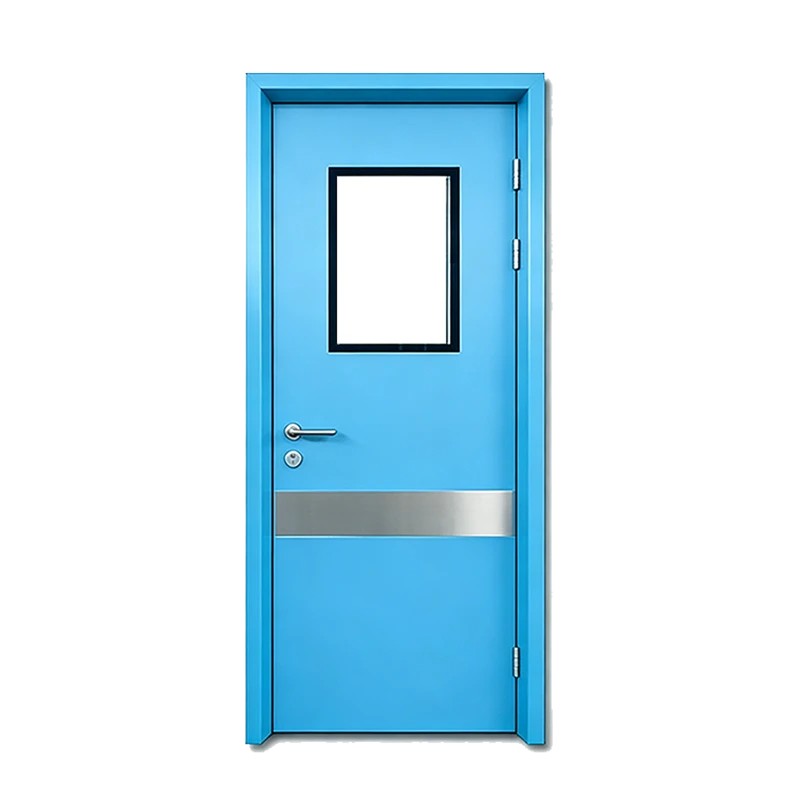

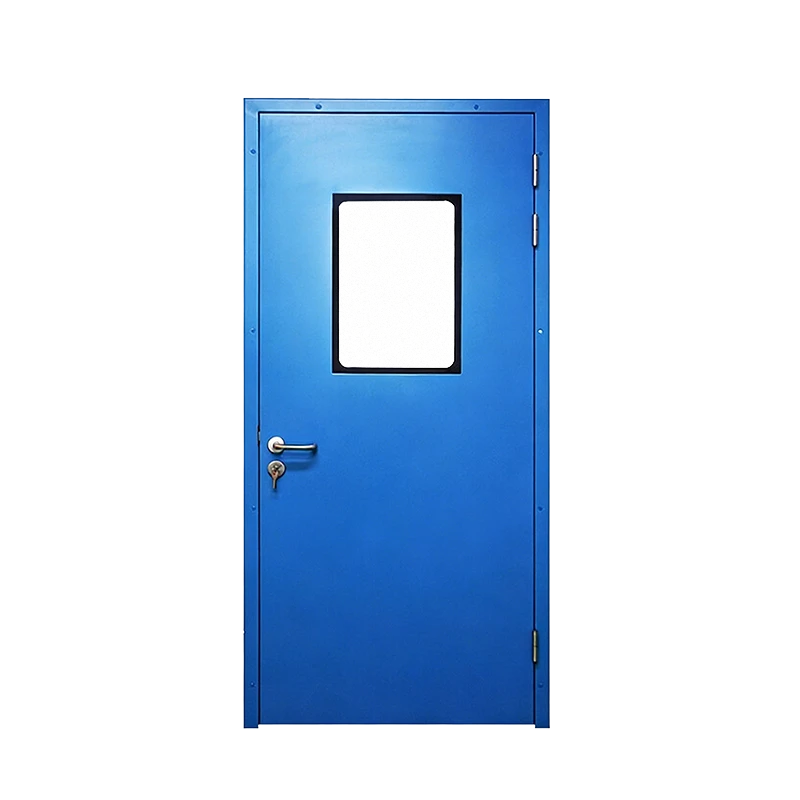

Manual Single-Opening Swing Airtight Door

The single-opening type is suitable for standard doorways, with the door opening via a single push-pull mechanism.

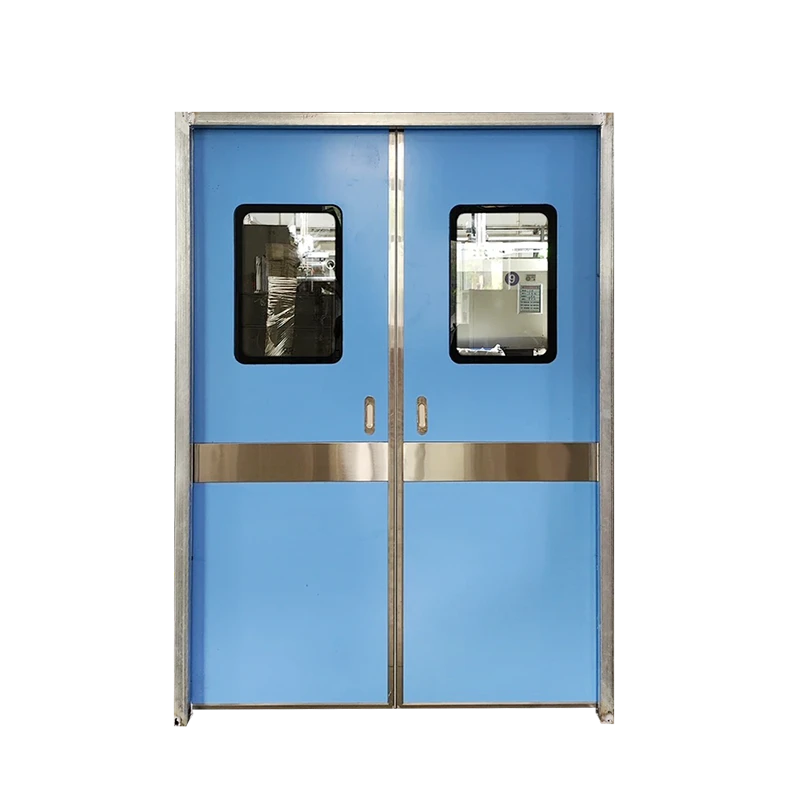

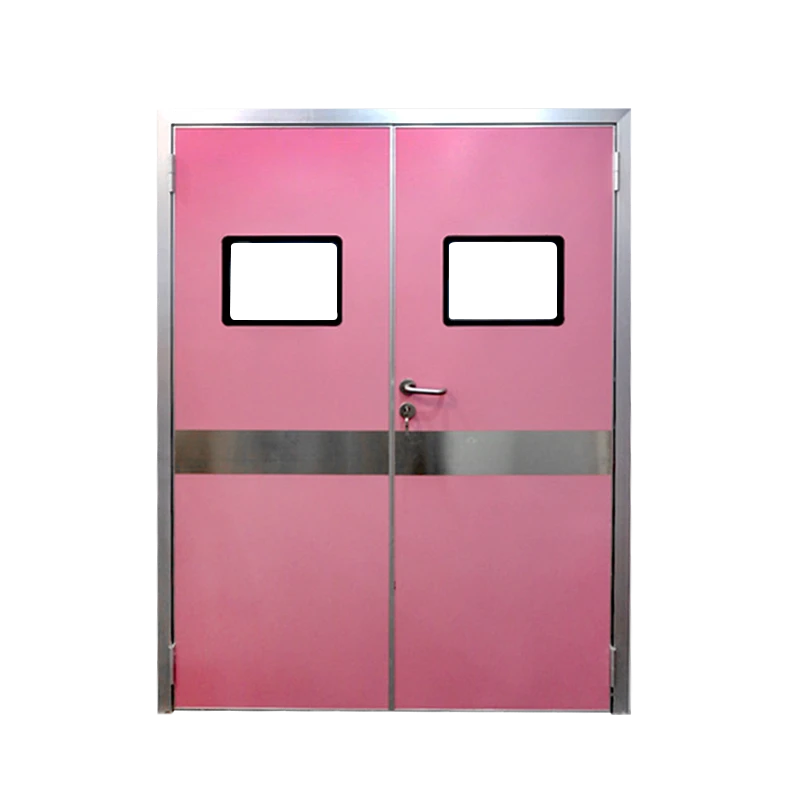

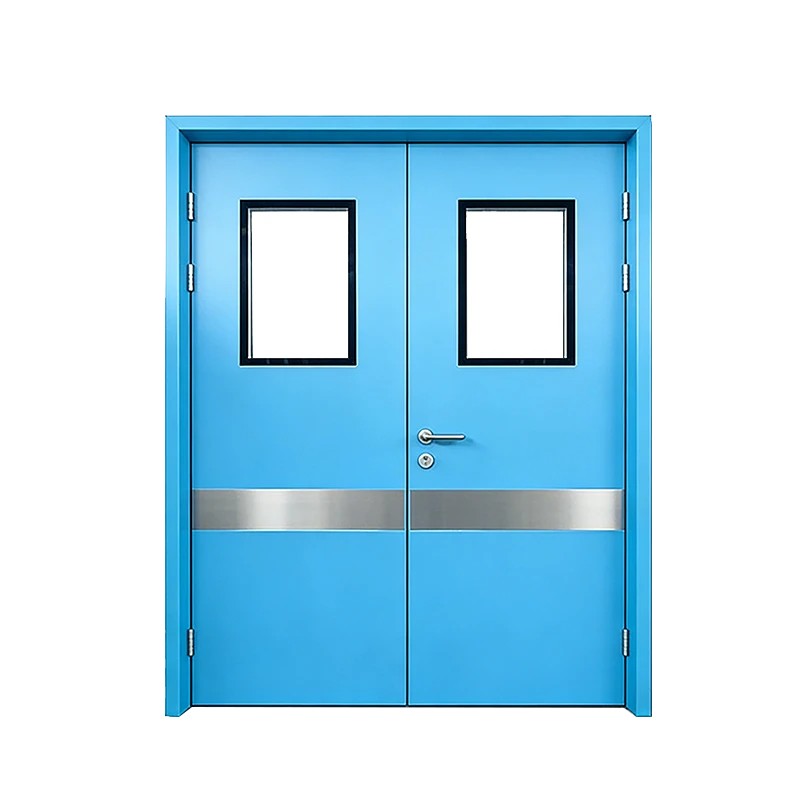

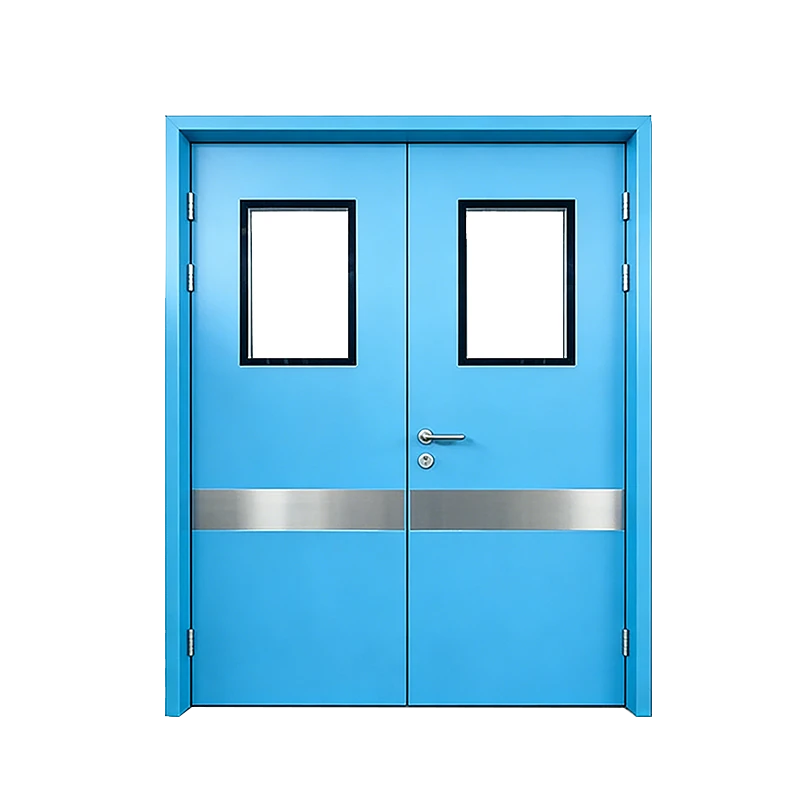

Manual Double-Opening Swing Airtight Door

The double-opening type features a bidirectional opening structure, suitable for larger passageways, and offers flexible opening and closing.


ItemsDescription
Product NameOperating room airtight door、Manual Swing Airtight Door
Door Type1M -2M
ConstructionA wide range of sliding hermetic Doors. These are basically meant for air ingression in the room. The door has mechanically interlocked vertical edges that add strength and rigidity, which makes them appropriate for light and heavy use.
SensorManual door opening
WindowStandard 400 x 600MM clear acrylic, black rubber surrounding. Various Window Configurations
Door Fan Thickness40MM
CoreAluminum  Honeycomb
Face Sheet MaterialStainless Steel 304#/ 201#/ Galvanized steel
FinishPolished/ Spray painting
SealFull perimeter gasketing
ApplicationsHospital, Food, Cold storage, Pet, Compliant Cleanroom, etc.
Warranty1Years
